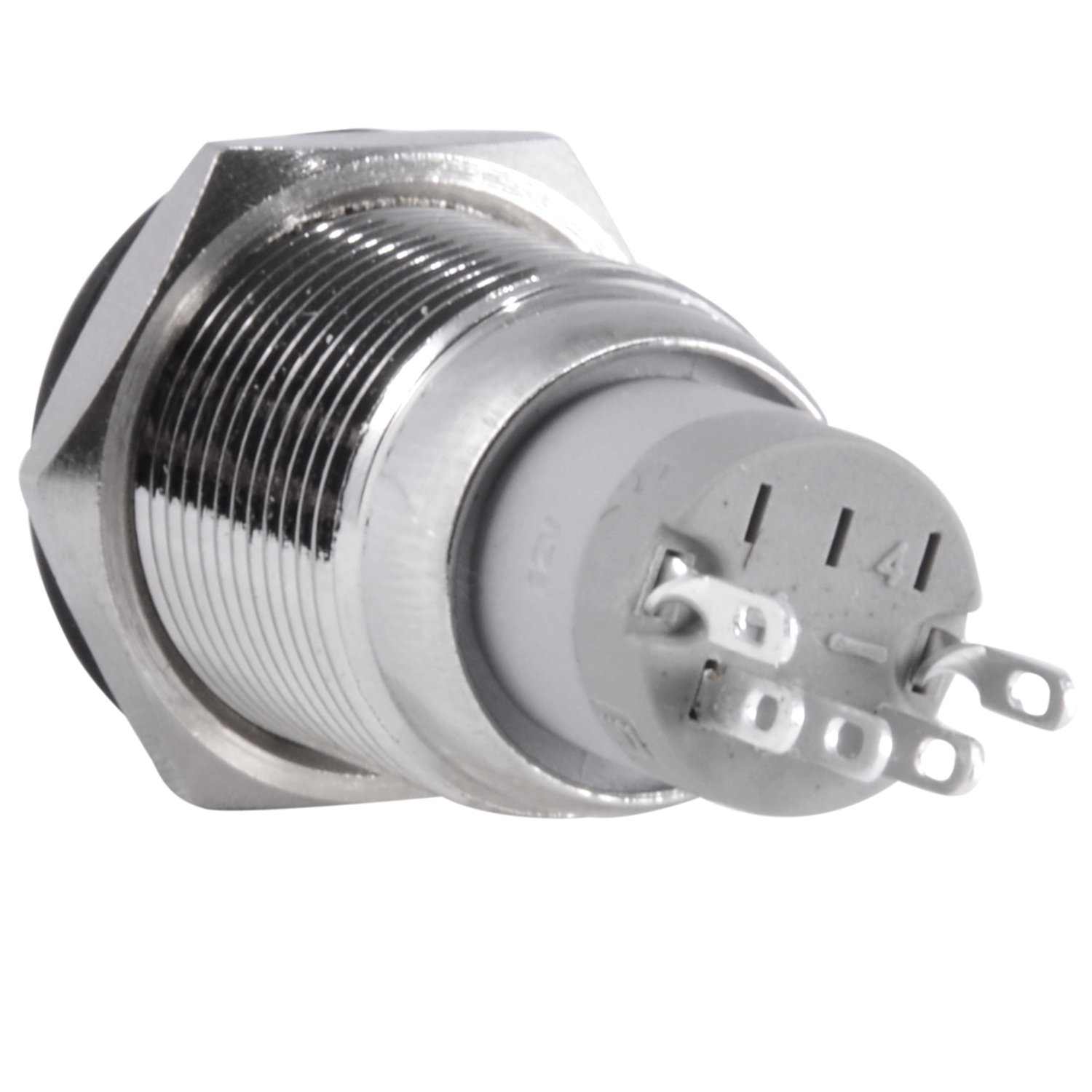

Lоwеѕt Prісе JacobsParts Momentary Pushbutton Starter Switch Stainless Steel Silver with Blue LED fits 5/8" (16mm) Diameter Panel Cutout Hole
Price review JacobsParts Momentary Pushbutton Starter Switch Stainless Steel Silver with Blue LED fits 5/8 (16mm) Diameter Panel Cutout Hole
So you can check out the other reviews 🔥 JacobsParts Momentary Pushbutton Starter Switch Stainless Steel Silver with Blue LED fits 5/8 (16mm) Diameter Panel Cutout Hole at Amazon.com
only with $
| Operation Mode | ON-NONE-OFF |
| Current Rating | 3 Amps |
| Operating Voltage | 12 Volts |
| Contact Type | Normally Open |
| Connector Type | Screw |
| Brand | JacobsParts |
| Switch Type | SPST, Metal |
| Terminal | Spst |
| Material | Metal |
| Mounting Type | Panel Mount |
- Momentary pushbutton switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for your computer, a boat horn or starter switches for cars, trucks and other automobiles
- This switch has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage

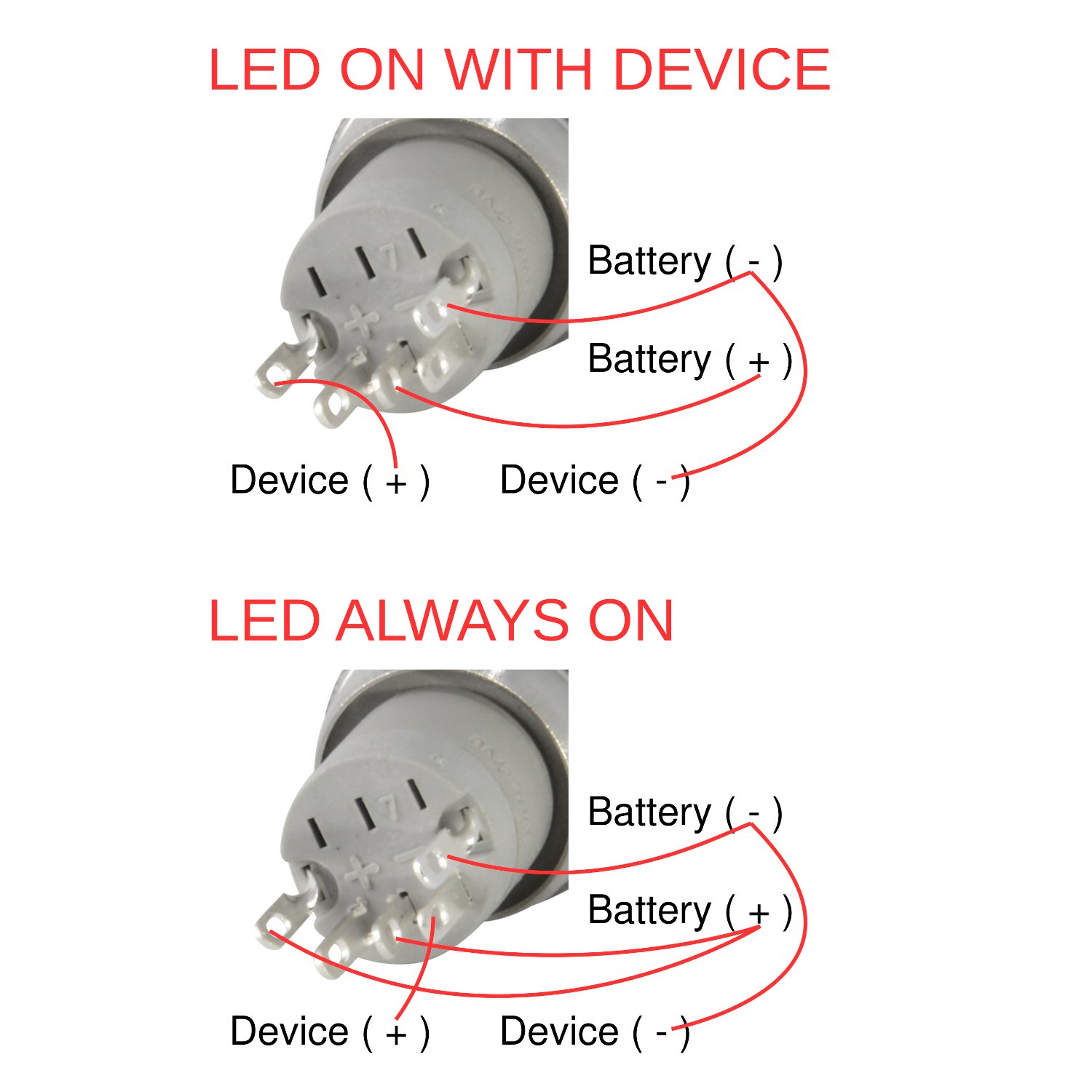

- The switch and LED are separate. The LED can be on all the time or only when the button is pressed
- Installation: Cut mounting hole into the panel using a 5/8" drill bit. Screw the threaded "neck" of the switch into the panel cutout hole and secure it on the reverse side of the panel with the included metal nut. The included rubber O-ring may optionally be used for additional water resistance by placing the ring between the top of the neck (just behind the faceplate) and the front of the panel. Package includes switch, metal nut and rubber O-ring
- Operation Type: Momentary (push the button, ON; release it, OFF), Max Switch Rating: 250V AC/DC 3A, LED rating: 12V DC 15mA, Panel Cutout Diameter: 5/8" (16mm)
Product Description
Specifications
Operation Type: Momentary (push the button, ON; release it, OFF)
Panel Cutout Diameter: 5/8" (16mm)
Thread Depth: 5/8" (16mm)
Faceplate Diameter: 3/4" (18mm)
Total Depth (Including Contacts): 1-1/2" (36mm)
Max Switch Rating: 250V AC/DC 3A
LED rating: 12V DC 15mA
Circuit Type: 1 NO (circuit is normally open/inactive)
Switch Type: SPST (Single Pole, Single Throw)
Enclosure Material: Stainless Steel
Protection Level: IP67
Operation Temperature: -20C to 55C
- Momentary pushbutton switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for your computer, a boat horn or starter switches for cars, trucks and other automobiles
- Constructed of non-oxidizing, corrosion resistant stainless steel
- Accented with brilliant LED light ring
Product Specifications
Specification for this product family
----------------------------
